PMIG  200ııı

Features and Advantages

• Multi-Process Synergic Inverter Welder

• New Generation advanced IGBT Inverter Technology.

• Compact design with heavy duty ,easy to move.

• Multiple Process with Pulse / Duplex Pulse MIG (GMAW), Stick ( SMAW)

• Ideal for welding of carbon steels, low-alloy steels, stainless steels and aluminum

• Manual and Synergic controls

• Welding mode, Welding Materials,  Wire Diameters 2T/4T, Spot Welding selections/ settings.

• Digital welding parameters display.

• Excellent welding with steel, stainless Steel, Aluminium and Flux cored wires.

• Equipped with voltage protection and thermal protection

• Adjustable ending current / voltage and inductance.

• Adjustable; Hot start, Arc Force for MMA welding.

• Stepless  welding wire feeding speed ( A) and voltage (V) adjustment knobs.

• Built-in soft wire feeding, post-gas, burn-back and ball cutting.

• IP21S Protection Class

• Weight is 11Kg.

• Dimensions (cm.) (L×W×H) 490x190x335

Specifications

Model	PMIG 200III

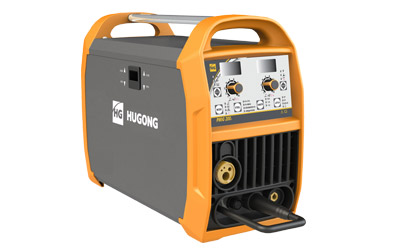

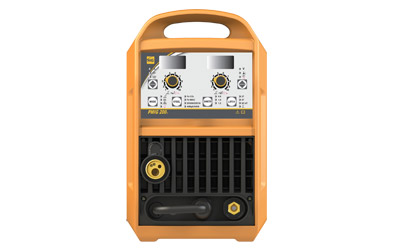

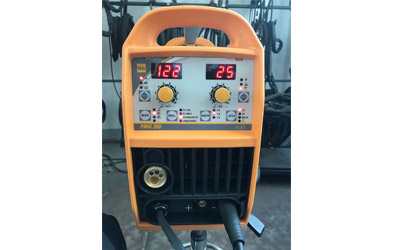

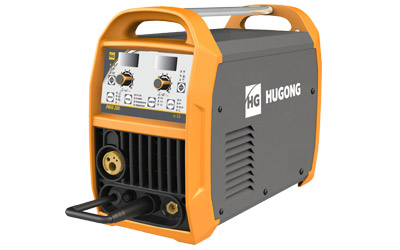

Product Pictures
Input Power (V)	220
Rated Input Current (A)	38
Rated Input Capacity (kVA)	8.36
Rated Open Circuit Voltage(V)	68
Welding Current Adjustment Range(A)	MIG30-200/MMA25-200
Rated Output(A) (40℃)	20%@200
Weight (kg)	11
LxWxH (mm)	490x190x335
