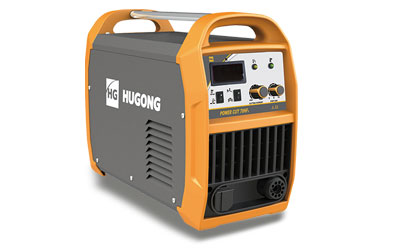

POWER CUT  70HFııı

Portable Plasma Cutter.
Equipped with air pressure meter & air valve.
There Phase / 400 V.


 sales@hugong.com     0086-21-51211666


Machine Show

Features and Advantages

• Portable Plasma Cutter

• New Generation IGBT Inverter Technology

• High performance on cutting of low alloyed steels, stainless steels   and aluminium alloys.

• Equipped with voltage protection and thermal protection

• Easy-to-use and user-friendly control panel

• Thermal protect and air pressure indicators

• Steeples cutting current & post gas knobs

• 2T/4T selections

• Digital display

• Gas checking / cutting and 2T/4T selection switchs

• Fan cooling system

• IP21S Protection Class

• Lightweight,Small and patented compact design

Specifications

ModelPOWER CUT 70HFIII
Product Picturespowercut7020011301.jpg
Input Power (V)400
Rated Input Current (A)13.5
Rated Input Capacity (kVA)9.4
Rated Open Circuit Voltage(V)330
Welding Current Adjustment Range(A)25-70
Rated Output(A) (20℃) / (40℃)100%60%@50

Recommend Quality Cutting Thickness(mm)

17
Maximum Cutting Thickness(mm)25
Weight (kg)22.7
LxWxH (mm)550x245x405


Accessories

ac20011207.jpg    1578644859115122.jpg    ac20011209.jpg    1578799757139322.jpg    ac20011208.jpg

Documents

POWER CUT 70 HFııı
