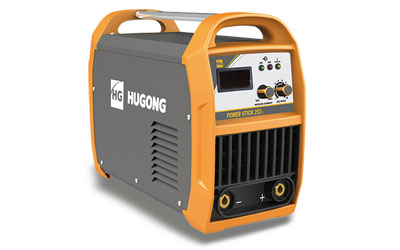

POWER STICK  252ııı

Dual Input Voltage ( 230V / 400 V) Portable Stick / DC TIG Welder
Excellent welding performance with Rutile ( E 6013), Basic ( E 7018) as well  as Cellulosic Type Electrodes ( E 6010)
Adjustable Arc Force


 sales@hugong.com     0086-21-51211666


Features and Advantages

• Portable , Dual Voltage ( 230 V / 400 V) Stick / DC TIG Welder

• New Generation IGBT Inverter Technology

• High duty cycle and welding capacity

• Built-in Hot Start and Adjustable Arc force

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Excellent welding performance with Rutile ( E 6013), Basic ( E 7018) as well  as Cellulosic ( E 6010) Type Electrodes in diameters of 1.6 mm. to 5 mm.

• Easy-to-use and user-friendly control panel

• Stepless welding current adjustment knob

• Digital ampermeter

• Equipped with thermal protection and it’s indicator light.

• Equipped with voltage protection this improves the reliability.

• Input voltage  ( 230 V / 400 V)  indicator light.

• Easy welding cable connections with European type quick connectors.

• Fan cooling system

• IP21S Protection Class.

• Lightweight, Small and Patentde Compact Design

Specifications

ModelPOWER STICK 252WIII
Product Picturespowerstick25220011201.jpg
Input Power (V)

230    400

Rated Input Current (A)

47    33

Rated Input Capacity (kVA)

10.8    13.2

Rated Open Circuit Voltage(V)

77    62

Welding Current Adjustment Range(A)

25-200    30-250

Rated Output(A) (20℃) / (40℃)

60%@200    40%@250

Weight (kg)

19.5

LxWxH (mm)

500x240x410


Accessories



Optional
