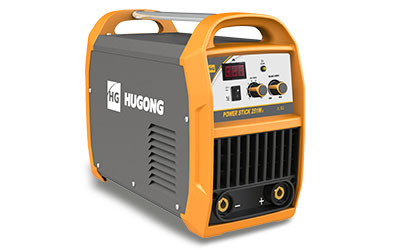

POWER STICK  251Wııı

Single Phase ( 240 V) Portable Stick / DC TIG Welder
Excellent welding performance with Rutile ( E 6013), Basic ( E 7018) as well  as Cellulosic Type Electrodes ( E 6010)
Adjustable Arc Force


 sales@hugong.com     0086-21-51211666


Features and Advantages

• Portable Stick / DC TIG Welder

• New Generation IGBT Inverter Technology

• Built in Hot Start,anti-sticking and adjustment Arc force

• High Duty Cycle and welding capacity

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Excellent welding performance with Rutile ( E 6013), Basic ( E 7018) as well  as Cellulosic Type Electrodes ( E 6010) in diameters of 1.6 mm. to 5 mm.

• Easy-to-use and user-friendly control panel

• Stepless welding current adjustment knob

• Welding mode SMAW/DC TIG selection switch

• Digital ampermeter

• Power Indicator light

• Equipped with thermal protection and it’s indicator light.

• Equipped with voltage protection this improves the reliability.

• Easy welding cable connections with European type quick connectors.

• Fan cooling system

• IP21S Protection Class.

• Lightweight, Small and Patentde Compact Design

Specifications

ModelPOWER STICK 251WIII
Product Picturespowerstick16220011201.jpg
Input Power (V)

240

Rated Input Current (A)

47

Rated Input Capacity (kVA)

10.34

Rated Open Circuit Voltage(V)

83

Welding Current Adjustment Range(A)

30-250

Rated Output(A) (20℃) / (40℃)

60%30%@251

Weight (kg)

12

LxWxH (mm)

459x200x338

Accessories



Optional
