POWER STICK  162ııı/202ııı

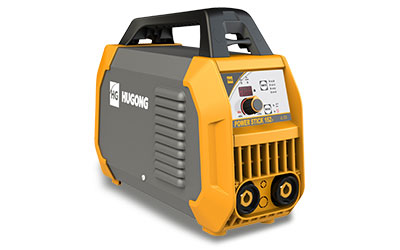

Machine Show

Features and Advantages

• Portable，Dual Voltage ( 110 V / 220 V) Stick / DC TIG Welder

• New Generation IGBT Inverter Technology

• Built-in anti-sticking,hot start and arc force

• High Duty Cycle and welding capacity

• Pre-set welding current for each welding electrode diameter(2 mm. to 4mm)

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Excellent welding performance with Rutile ( E 6013), Basic ( E 7018)  as well as   Cellulosic Type Electrodes ( E 6010) in diameters of  2 mm. to 4 mm.

• Easy-to-use and user-friendly control panel

• Welding electrode diameter selection button

• Stepless welding current + / - % 15 adjustment knob

• Welding mode SMAW/DC TIG selection button

• Digital ampermeter and Power Indicator light

• Equipped with thermal protection and it`s indicator light.

• Equipped with voltage protection this improves the reliability.

• Easy welding cable connections with European type quick connectors.

• Fan cooling system

• IP21S Protection Class

• Lighweight,small and patented compact design

Specifications

Model	POWER STICK 162III	POWER STICK 202III
Product Pictures
Input Power (V)	22    110	220    110
Rated Input Current (A)	3    35	40    42
Rated Input Capacity (kVA)	6.6    3.9	8.8    4.6
Rated Open Circuit Voltage(V)	78    78	78    78
Welding Current Adjustment Range(A)	MMA41-160 TIG15-160 MMA41-130 TIG15-130	MMA41-200 TIG15-200 MMA41-130 TIG15-130
Rated Output(A) (20℃) / (40℃)	35%@160    100%@130	30%@200    100%@130
Weight (kg)	4.8    4.8	5.1    5.1
Electrode Diameter (mm)	1.6-4.0	1.6-5.0
LxWxH (mm)	395x 154x 299 395x 154x 299	395x 154x 299 395x 154x 299
