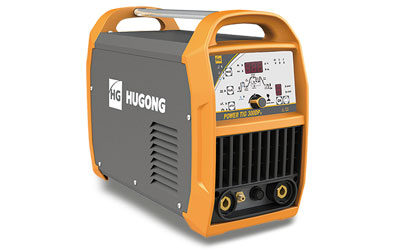

POWER TIG  300DPııı

Able to save and re-load the saved welding parameters .Easy-to-use and user-friendly control panel .


 sales@hugong.com     0086-21-51211666


Features and Advantages

• Portable Inverter DC HF TIG / MMA Welder With Pulse

• New Generation IGBT Inverter Technology

• Pulse TIG; provides minimized heat input and faster freezes weld puddle that   gives perfect welding solutions even on thin materials with perfect bead appearance

• Ideal for welding of carbon steels, low-alloy steels, stainless steels  and aluminum &alloys

• Able to save and re-load the saved welding parameters

• Water cooling system can be used.

• Built-in Anti-Sticking;

• Hot start, Arc Force for MMA welding.

• Equipped with voltage protection and thermal protection

• Easy-to-use and user-friendly control panel

• Digital Display

• Welding Mode (DC HF TIG / LIFT TIG/MMA), Pulse TIG and 2T/4T selections

• Adjustable & displayable gas pre-flow/post flow, ignition/ base/peak   current; frequency : simply welding procedure parameters.

• Steeples Welding Current/Setting Knob

• Power, Overload and Under/Over-Voltage LED indicators

• Easy welding cable connections with European type quick connectors

• Foot control can be used

• Fan cooling system

• IP21S Protection Class

• Lightweight, Small and Compact Design

Specifications

ModelPOWER TIG 300DPIII
Product Picturespowertig30020011201.jpg
Input Power (V)400
Rated Input Current (A)17.4
Rated Input Capacity (kVA)12.1
Rated Open Circuit Voltage(V)68
Welding Current Adjustment Range(A)10-300
Rated Output(A) (20℃) / (40℃)60%35%@300
Weight (kg)18
LxWxH (mm)508x241x408

Accessories

ac20011205.jpg    1578644859115122.jpg    ac20011206.jpg    1578799757139322.jpg

Optional

1578799481701293.jpg    op20011207.jpg

Documents

POWER TIG 300DP
