TEKMASTER  MIG 200

Features and Advantages

• Portable Multi-Process Inverter Welder

• Manual and synergetic control

• Fully digital and user friendly control panel and display

• Multiple Process with MIG ( GMAW), MMA ( SMAW) and Lift TIG ( GTAW)

• New Generation advanced IGBT Inverter Technology

• Ideal for welding of carbon steels, low-alloy steels, stainless steels

• Excellent welding with steel, stainless steel, aluminium and flux cored wires

• Pre-set and adjustable welding parameters for MIG ( GMAW),  MMA ( SMAW) and Lift TIG ( GTAW) welding process.

• Equipped with voltage protection and thermal protection

• Stepless wire feeding speed ,voltage and welding current adjustment  knob for manual settings.

• Built-in anti-sticking, hot start and adjustable arc force for MMA welding

• Easy welding cable connections with European type quick connectors.

• Fan cooling system

• IP21S Protection Class.

• Lightweight, Small and Patented Compact design

Specifications

Model	TeKMaster MIG 200

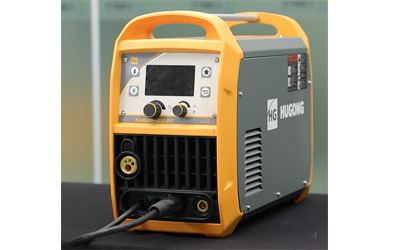

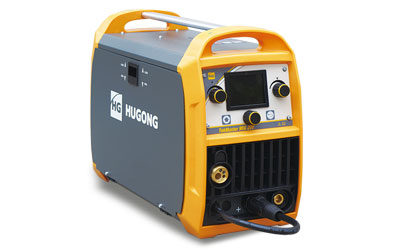

Product Pictures
Input Power (V)	230
Rated Input Current (A)	36
Rated Input Capacity (kVA)	8.6
Rated Open Circuit Voltage(V)	69
Welding Current Adjustment Range(A)	MIG40-200/MMA10-180/TIG10-180
Rated Output(A) (20℃) / (40℃)	40%20%@200
Weight (kg)	19.6
LxWxH (mm)	550x245x405
