ARMADA  K

Features and Advantages

• Submerged Arc Welding (SAW) Welder

• Thyristor control

• Multi- Process with  Submerged Arc Welding ( SAW), MIG ( GMAW ) ,  MMA(SMAW) and Gouging

• On-wheels , Industrial type, heavy duty with process flexibilty

• CC/CV Operational selection for DC Output

• Excellent welding with steel and flux cored wires

• Ideal for shipyards, pipemills and heavy fabrication industries

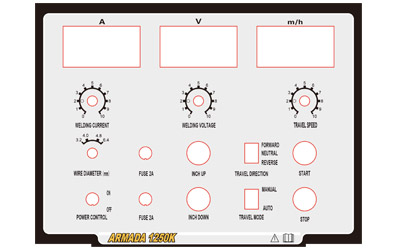

• Digital welding current, welding voltage and tractor's speed display

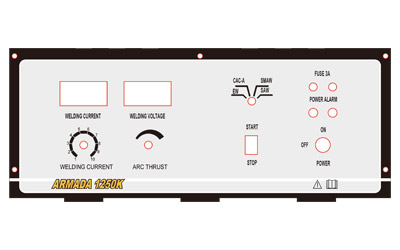

• Easy-to-use  and user- friendly control panel

• Equipped with voltage and thermal protection

• Power , overload and under/ over - voltage LED indicators.

• Fan cooling system

Specifications

Model	ARMADA 630K	ARMADA 1000K	ARMADA 1250K

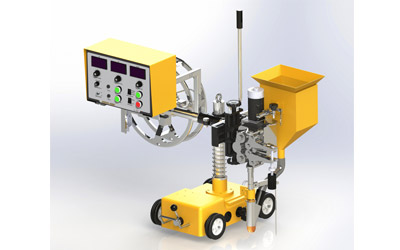

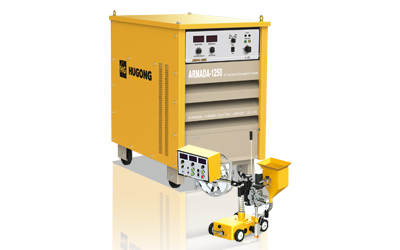

Product Pictures
Input Power(V)	400	400	400
Rated Input Current(A)	60	105	130
Rated Input Capacity(kVA)	41	72.8	90
Rated Open Circuit Voltage(V)	70	75	75
Welding Current Adjustment Range(A)	150-630	200-1000	250-1250
Rated Output(A) (40℃)	100%@630	100%@1000	80%@1250
Welding Speed (m/h)	10-85	10-85	10-85
Welding Wire Diameter(mm)	1.6-3.2	2.0-6.0	2.0-6.0
Weight(kg)	366	543	542
LxWxH (mm)	1000x600x1000	1000x600x1000	1000x600x1000
