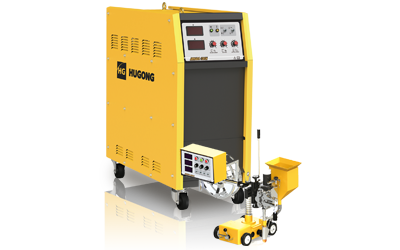

ARMADA  N

Features and Advantages

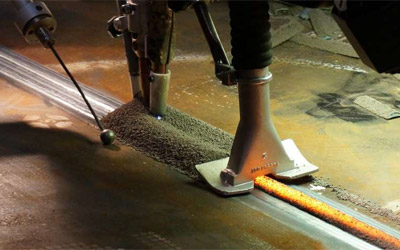

• Submerged Arc Welding (SAW) Welder

• New Generation Advanced IGBT Inverter Technology

• Multi- Process with  Submerged Arc Welding ( SAW), MIG ( GMAW ) ,   MMA(SMAW) and Gouging

• On-wheels , Industrial type, heavy duty with process flexibilty

• CC/CV Operational selection for DC Output

• Excellent welding with steel and flux cored wires

• Ideal for shipyards, pipemills and heavy fabrication industries

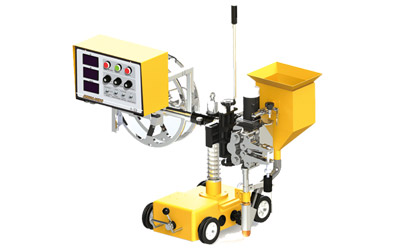

• Digital welding current, welding voltage and tractor's speed display

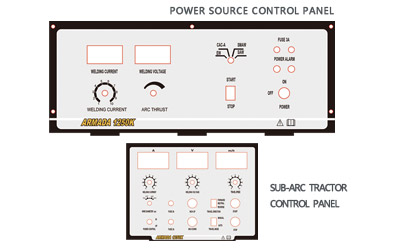

• Easy-to-use  and user- friendly control panel

• Equipped with voltage and thermal protection

• Power , overload and under/ over - voltage LED indicators.

• Fan cooling system

Specifications

Model	ARMADA 630N	ARMADA 1000N	ARMADA 1250N
Product Pictures
Input Power(V)	400	400	400
Rated Input Current(A)	53.5	77	100
Rated Input Capacity(kVA)	36.9	53.3	69.8
Rated Open Circuit Voltage(V)	81	81	81
Welding Current Adjustment Range(A)	60-130	90-1000	90-1250
Rated Output(A) (40℃)	100%@630	100%@1000	80%@1250
Welding Speed (m/h)	10-130	10-130	10-130
Welding Wire Diameter(mm)	2.0-3.2	3.2-5.0	3.2-6.0
Weight(kg)	103	115	115
LxWxH (mm)	840x380x900	840x380x900	840x380x900
