ESTICK  SERIES

Machine Show

Features and Advantages

• Portable Stick Welder

• New Generation IGBT Inverter Technology

• Built-in Anti-Sticking and Hot Start

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Excellent arc characteristics and performance with electrodes in diameters   of 1.6 to 5.0 mm. Rutile (E 6013) and Basic (E 7018) type electrodes

• Thermal protection and power indicator light

• Equipped with voltage protection this improves the reliability

• Easy-to-use and user-friendly control panel

• Easy welding cable connections with European type quick connectors

• Fan cooling system

• IP21S Protection Class

• Lightweight, Small and Compact Design

Specifications

Model	ESTICK 160 III	ESTICK 200  III

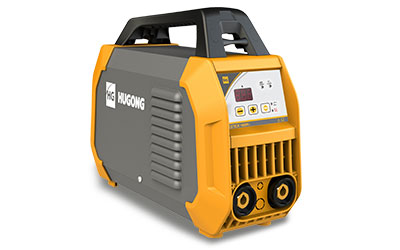

Product Pictures
Input Power (V)	230	230
Rated Input Current (A)	31	41
Rated Input Capacity (kVA)	6.8	9.0
Rated Open Circuit Voltage(V)	78	78
Welding Current Adjustment Range(A)	20-160	20-200
Rated Output(A) (20℃) / (40℃)	50%25%@160	40%15%@200
Weight (kg)	5.5	5.5
Electrode Diameter (mm)	1.6-4.0	1.6-5.0
LxWxH (mm)	400x154x300	400x154x300
