EXTREME  SERIES

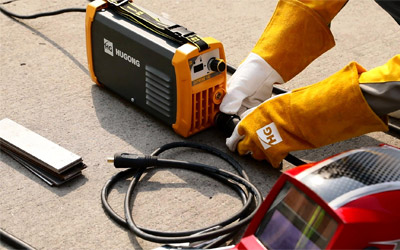

Machine Show

Features and Advantages

• Portable Stick Welder

• New Generation IGBT Inverter Technology

• Built-in Anti-Sticking and Hot Start

• Ideal for welding of carbon steels,low-alloy steels and stainless steels

• Excellent arc characteristics and performance with electrodes in diameters of 1.6mm. to 4 mm.Rutile ( E6013) and Basic ( E 7018) Type Electrodes

• Thermal protection and power indicator light

• Equipped with voltage protection this improves the reliability

• Easy-to-use and user-friendly control panel

• Steeples welding current knob

• Easy welding cable connections with European type quick connectors

• Fan cooling system

• IP21S Protection Class

• Lightweight, Small and Patented Compact Design

Specifications

Model	EXTREME 100  III	EXTREME 120  III	EXTREME 140  III	EXTREME 160  III

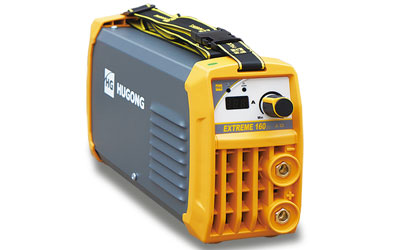

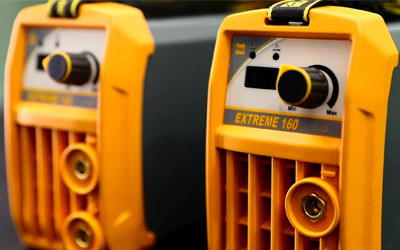

Product Pictures
Input Power (V)	110	230	230	230
Rated Input Current (A)	34	22	25	30
Rated Input Capacity (kVA)	3.74	5.06	5.75	6.9
Rated Open Circuit Voltage(V)	65	68	68	68
Welding Current Adjustment Range(A)	20-100	15-120	20-140	20-160
Rated Output(A) (20℃) / (40℃)	20%20%@100	15%20%@100	20%20%@140	20%20%@160
Weight (kg)	2.5	3	3	3
Electrode Diameter (mm)	1.6-2.6	1.6-2.6	1.6-3.2	1.6-4.0
LxWxH (mm)	280x 102 x 176	315 x 102 x 176	315 x 102 x 176	315 x 102 x 176
