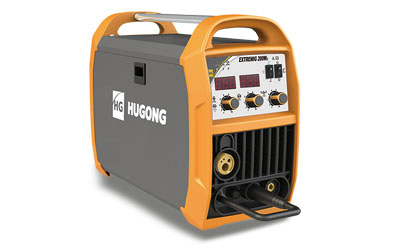

EXTREMIG  160Wııı/180Wııı/200Wııı

Machine Show

Features and Advantages

• Portable Multi-Process Inverter Welder

• New Generation advanced IGBT Inverter Technology

• Multiple Process with MIG ( GMAW), MMA ( SMAW) and Lift TIG ( GTAW)

• Ideal for welding of carbon steels, low-alloy steels, stainless steels

• Excellent welding with steel, stainless steel, aluminium and flux cored wires

• Welding mode,2T/4T and spot welding selection.

• Digital welding current and voltage display.

• Equipped with voltage protection and thermal protection

• Power, Overload and Under/Over-Voltage LED indicators

• Stepless wire feeding speed ,voltage and spot welding timer adjustment knob

• Built-in anti-sticking, hot start and adjustable arc force for MMA welding

• Easy welding cable connections with European type quick connectors.

• Fan cooling system

• IP21S Protection Class

• Lightweight, Small ,Compact and patented design

Specifications

Model	EXTREMIG160WIII	EXTREMIG180WIII	EXTREMIG200WIII
Product Pictures
Input Power (V)	230	230	230
Rated Input Current (A)	28.5	32	36
Rated Input Capacity (kVA)	6.84	7.36	8.64
Rated Open Circuit Voltage(V)	71	68	71
Welding Current Adjustment Range(A)	MIG30-160/MMA30-130/TIG20-160	MIG30-180/MMA30-150/TIG20-180	MIG30-200/MMA30-170/TIG20-200
Rated Output(A) (20℃) / (40℃)	40%20%@160	40%20%@180	30%15%@200
Weight (kg)	10.5	10.5	10.5
LxWxH (mm)	490x190x335	490x190x335	490x190x335
