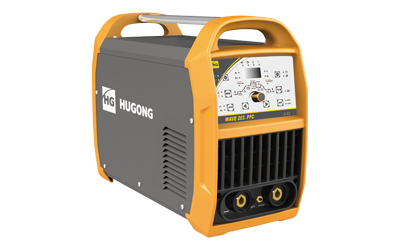

WAVE  203III PFC

Features and Advantages

●Portable Inverter AC/DC Pulse TIG / MMA Welder

●New Generation IGBT Inverter Technology

●PFC；Power factor correction techonology

●Ideal for welding of carbon steels, low-alloy steels, stainless steels,

  aluminium / aluminium alloys and copper

●Digital and full functional display

●Digital ampermeter / voltmeter

●Built-in Anti-Sticking

●Equipped with voltage protection and thermal protection

●Easy-to-use and user-friendly control panel

●Welding Mode, AC/DC, Pulse, 2T/4T and save-load setting selections/

   settings buttons.

●Adjustable & displayable gas pre-flow/post flow, AC frequency/balance,

  ignition/ base/peak current; simply welding procedure parameters.

●Adjustable; Hot start, Arc Force for MMA welding.

●Steeples Welding Current/Setting Knob

●Power, Overload and Under/Over-Voltage LED indicators

●Easy welding cable connections with European type quick connectors

●Foot pedal control can be used

●Fan cooling system

●IP21S Protection Class

●Lightweight, Small and Patented Compact Design

●Weight is only 16.5 Kg.

●Dimensions (cm.) (L×W×H) 52× 24.2× 43

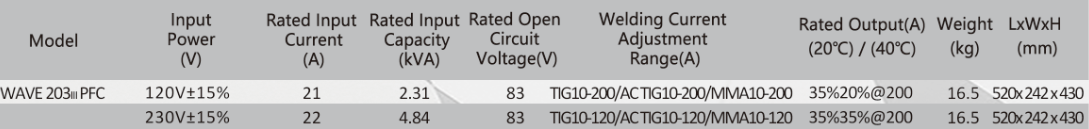

Specifications
