INVERDELTA  400Wııı/500Wııı

Features and Advantages

• On- Wheels Industrial Type Stick Welder

• New Generation IGBT Inverter Technology

• High duty cycle and welding capacity

• Ideal for welding of carbon steels, low-alloy steels and stainless steels

• Excellent welding performance with Rutile ( E 6013), Basic ( E 7018)  as well  as Cellulosic Type Electrodes ( E 6010)  in diameters of 1.6mm to 5 mm

• Adjustable Hot Start and Arc Force

• Easy-to-use and user-friendly control panel

• Stepless welding current adjustment Knob

• Digital ampermeter / voltmeter

• Equipped with thermal protection and it’s indicator light.

• Power Indicator light

• Equipped with voltage protection this improves the reliability.

• Easy welding cable connections with European type quick connectors.

• Remote control can be used.

• Fan cooling system

• IP21S Protection Class

Specifications

Model	INVERDELTA 400WIII	INVERDELTA 500WIII

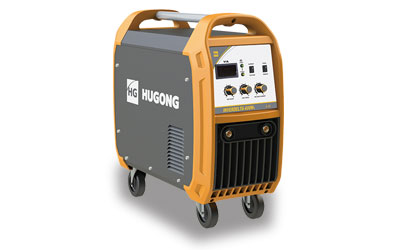

Product Pictures
Input Power (V)	400	400
Rated Input Current (A)	26	40
Rated Input Capacity (kVA)	18	27.7
Rated Open Circuit Voltage(V)	76	80
Welding Current Adjustment Range(A)	25-400	25-500
Rated Output(A) (20℃) / (40℃)	60%25%@400	60%25%@500
Weight (kg)	45	49
LxWxH (mm)	654x322x671	654x322x671
