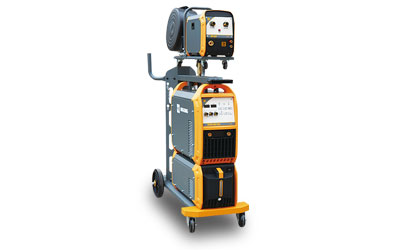

INVERMIG  500ııı

Features and Advantages

• On trolley, Water Cooled Multi-Process Inverter Welder

• New Generation advanced IGBT Inverter Technology.

• Industrial type, modular and compact design with heavy duty ,easy to move.

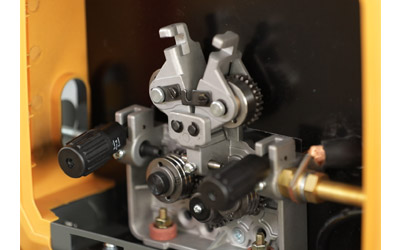

• Portable  4 Roll wire feeder unit.

• Multiple Process with MIG ( GMAW) and MMA ( SMAW) .

• Manual and Synergetic controls .

• Ideal for welding of carbon steels, low-alloy steels, stainless steels and aluminium.

• Digital welding current and voltage display.

• Equipped with voltage protection and thermal protection.

• Excellent welding with carbon steels, stainless steels, aluminium and flux cored wires.

• Power, Overload and Under/Over-Voltage LED indicators.

• Welding mode;Manual /Synergetic, wire diameter, 2T/4T and shielding  gas selections /settings.

• Adjustable ending current / voltage and inductance.

• Adjustable; Hot start, Arc Force for MMA welding.

• Stepless  welding wire feeding speed ( A) and voltage (V) adjustment knobs.

• Built-in soft wire feeding, pre /post-gas, burn-back and ball cutting.

• Patented design.

• IP21S Protection Class.

Specifications

Model	INVERMIG 500III
Product Pictures
Input Power (V)	400
Rated Input Current (A)	41.8
Rated Input Capacity (kVA)	27.5
Rated Open Circuit Voltage(V)	73
Welding Current Adjustment Range(A)	40-500
Rated Output(A) (20℃) / (40℃)	80%60%@500
Weight (kg)	91
LxWxH (mm)	1100x470x1580
