INVERMIG 350ııı/500ııı

On-trolley, Industrial Type MIG (GMAW) / MMA (SMAW) Welder.
Manual and Synergetic Control.
Heavy Duty, Portable 4 Roll Wire drive unit.

sales@hugong.com 0086-21-51211666

• On-wheels Multi-Process Inverter Welder.

• New Generation advanced IGBT Inverter Technology.

• Industrial type, modular and compact design with heavy duty ,easy to move.

• Portable 4 Roll wire feeder unit.

• Multiple Process with MIG ( GMAW) and MMA ( SMAW) .

• Manual and Synergetic controls .

• Ideal for welding of carbon steels, low-alloy steels, stainless steels and aluminium.

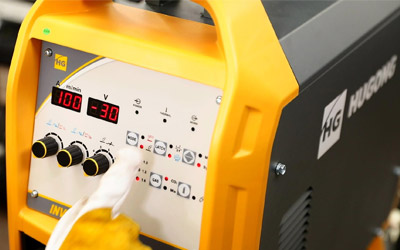

• Digital welding current and voltage display.

• Equipped with voltage protection and thermal protection.

• Excellent welding with carbon steels, stainless steels, aluminium and flux cored wires.

• Power, Overload and Under/Over-Voltage LED indicators.

• Welding mode;Manual /Synergetic, wire diameter, 2T/4T and shielding gas selections /settings.

• Adjustable ending current / voltage and inductance.

• Adjustable; Hot start, Arc Force for MMA welding.

• Stepless welding wire feeding speed ( A) and voltage (V) adjustment knobs.

• Built-in soft wire feeding, pre /post-gas, burn-back and ball cutting.

• Patented design.

• IP21S Protection Class.

Model	INVERMIG 350III	INVERMIG 500III

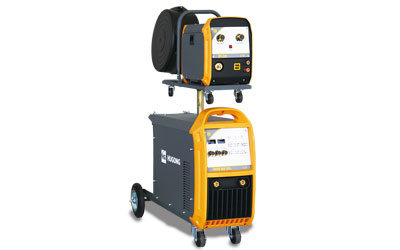

Product Pictures
Input Power (V)	400	400
Rated Input Current (A)	25.5	41.8
Rated Input Capacity (kVA)	16.8	27.5
Rated Open Circuit Voltage(V)	73	73
Welding Current Adjustment Range(A)	40-350	40-500
Rated Output(A) (20℃) / (40℃)	80%60%@350	80%60%@500
Weight (kg)	50	50
LxWxH (mm)	930x420x1130	930x420x1130
