PROTIG  400Pııı

Features and Advantages

• On trolley Water Cooled Inverter DC HF TIG / MMA Welder With Pulse

• Compact, Heavy Duty, Industrial Type with easy moving and storage

• New Generation advanced IGBT Inverter Technology.

• Pulse TIG; provides minimized heat input and faster freezes weld puddle  that gives perfect welding solutions even on thin materials with perfect bead  appearance

• Ideal for welding of carbon steels, low-alloy steels ,stainless steels and  aluminum & alloys

• Digital ampermeter / voltmeter

• Power, Overload and Under/Over-Voltage LED indicators

• Equipped with voltage protection and thermal protection

• Easy-to-use and user-friendly full functional control panel

• Welding Mode (DC HF TIG / LIFT TIG/MMA), TIG / Pulsed TIG and 2T/4T selections

• Adjustable & displayable gas pre-flow/post flow, ignition/ base/peak  current, frequency ; simply welding procedure parameters.

• Adjustable; Hot start, Arc Force for MMA welding.

• Steeples Welding Procedure Settings Knob

• Easy welding cable connections with European type quick connectors

• Fan cooling system

• IP21S Protection Class

• Patented design

Specifications

Model	POWER TIG 400PIII

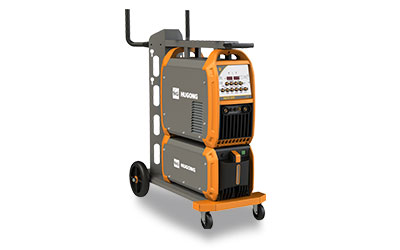

Product Pictures
Input Power (V)	400
Rated Input Current (A)	26
Rated Input Capacity (kVA)	18.1
Rated Open Circuit Voltage(V)	73
Welding Current Adjustment Range(A)	TIG20-400/MMA25-350
Rated Output(A) (20℃) / (40℃)	60%@400
Weight (kg)	38
LxWxH (mm)	1080x470x1265
