SUPERMATRIX  500ııı

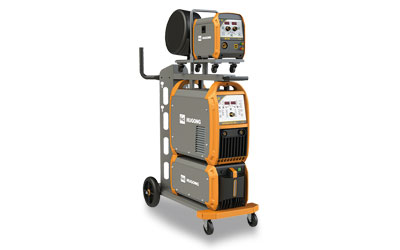

Machine Show

Features and Advantages

• On trolley, Water Cooled Multi-Process Synergic Inverter Welder

• New Generation advanced IGBT Inverter Technology.

• Industrial type, modular and compact design with heavy duty ,easy to move.

• Multiple Process with Pulse / Duplex Pulse MIG (GMAW), Stick ( SMAW)

• Ideal for welding of carbon steels, low-alloy steels, stainless steels and aluminum

• Manual and Synergic controls

• Welding mode, Welding Materials, Shielding Gas, Wire Diameters  selections/settings.

• Welding parameters storage and recall.

• Digital welding parameters display.

• Excellent welding with steel, stainless Steel, Aluminium and Flux cored wires.

• Power, Overload and Under/Over-Voltage LED indicators

• Equipped with voltage protection and thermal protection

• Adjustable ending current / voltage and inductance.

• Adjustable; Hot start, Arc Force for MMA welding.

• Stepless  welding wire feeding speed ( A) and voltage (V) adjustment knobs.

• Built-in soft wire feeding, post-gas, burn-back and ball cutting.

• IP21S Protection Class.

Specifications

Model	SUPERMATRIX 500III

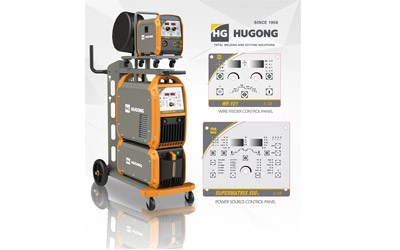

Product Pictures
Input Power (V)	400
Rated Input Current (A)	38
Rated Input Capacity (kVA)	27.5
Rated Open Circuit Voltage(V)	80
Welding Current Adjustment Range(A)	MIG30-500/MMA10-500
Rated Output(A) (20℃) / (40℃)	60%40%@500
Weight (kg)	112
LxWxH (mm)	1133x498x1508
