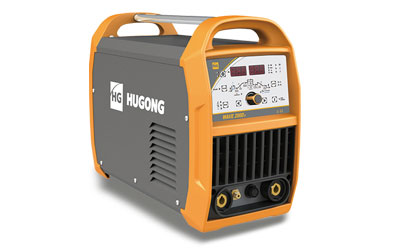

WAVE  200Dııı

Features and Advantages

• Portable Inverter AC/DC Pulse TIG / MMA Welder

• New Generation IGBT Inverter Technology

• Ideal for welding of carbon steels, low-alloy steels, stainless steels,  aluminium / aluminium alloys and copper

• Digital and full functional display

• Digital ampermeter / voltmeter

• Built-in Anti-Sticking

• Equipped with voltage protection and thermal protection

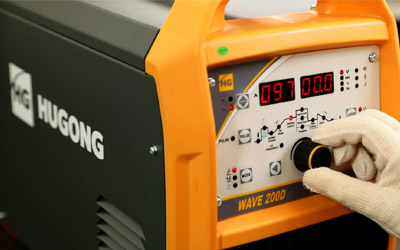

• Easy-to-use and user-friendly control panel

• Welding Mode, AC/DC, Pulse, 2T/4T , parameter +/- and gas checking  selections/settings buttons.

• Adjustable & displayable gas pre-flow/post flow, AC frequency/balance,  ignition/ base/peak current; simply welding procedure parameters.

• Adjustable; Hot start, Arc Force for MMA welding.

• Steeples Welding Current/Setting Knob

• Power, Overload and Under/Over-Voltage LED indicators

• Easy welding cable connections with European type quick connectors

• Foot pedal control can be used

• Fan cooling system

• IP21S Protection Class

• Lightweight, Small and Patented Compact Design

Specifications

Model	WAVE 200DIII

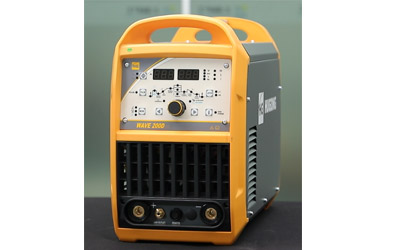

Product Pictures
Input Power (V)	230
Rated Input Current (A)	35
Rated Input Capacity (kVA)	8.05
Rated Open Circuit Voltage(V)	68
Welding Current Adjustment Range(A)	TIG5-200/AC TIG10-200/MMA5-170
Rated Output(A) (20℃) / (40℃)	35%15%@200
Weight (kg)	19.5
LxWxH (mm)	500x 240 x 410
